A Case Study in Optimized Solar Orientation
A perfect example of optimized solar orientation can be found in Two Journey Medica Plaza -- one of our current projects in Aliso Viejo.
LPA has a firm wide goal that all of our
projects exceed California’s Title 24 energy code by at least 15
percent -- and early design decisions about massing, building
orientation, and fenestration can have significant impacts on predicted
energy use of a project. LPA's mechanical engineers evaluate our
Title-24 performance during the schematic design phase (and sometimes
earlier), to provide valuable input to the entire team about the energy
impacts of design choices during these critical early stages of the
Early on in the design of Two Journey Medical
Plaza, the two story building was elevated above the project site and
placed on a grid of concrete columns and shear walls to maximize the
available area below for a city parking requirement. Once this
happened, the design team was able to divide and rotate the building in
a manner that optimized its solar orientation.

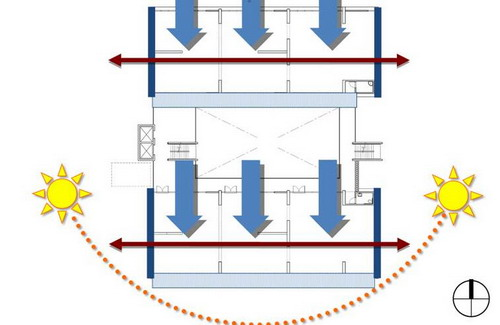

The diagram shows how the building has been divided into two wings that are turned in a
manner that places their long dimension on the east-west axis. This
gesture maximizes the project’s exposure to the north and the south. This is important because minimal direct sunlight (and the heat gain
that comes with it) reaches the north façade and the high angles of the
mid-day sun that strike the south sides of the building will be
shielded with overhangs, horizontal louvered screens and sunshades.
Since we have maximized the north and south elevations this means that
we have minimized our exposure to the east and west. Our mechanical
team will be happy about this because the low sun angles in the morning
and afternoon are difficult to stop, and excessive glazing on these
facades leads to higher loads that their HVAC systems will have to
be sized for. With a dimension of 46’ x 117’ (approximately) per wing,
the design solution results in a building that has 78 percent of its exterior facing north or south, and only 28 percent facing east or west.
As an added benefit, the division of the building
into two wings makes the 46’ depth possible. At this dimension, and with
full height glazing on the north and south, sunlight can fully penetrate
both wings of the building. Our mechanical engineers will be relieved
to see that only four windows face due west for a total area of 30 square feet.
By using the integrated sustainable design process, the engineers really do make us better architects. Thank you team.
